Installation

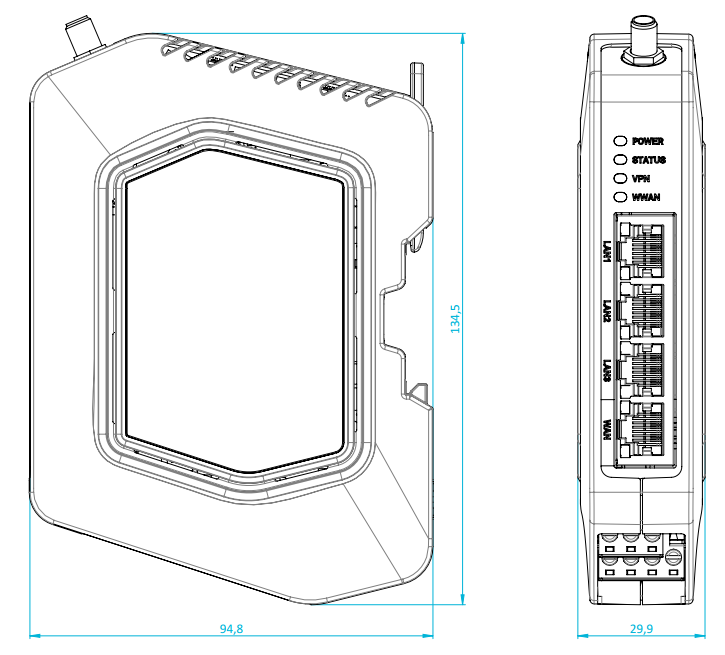

External device dimensions

Top-hat rail mounting

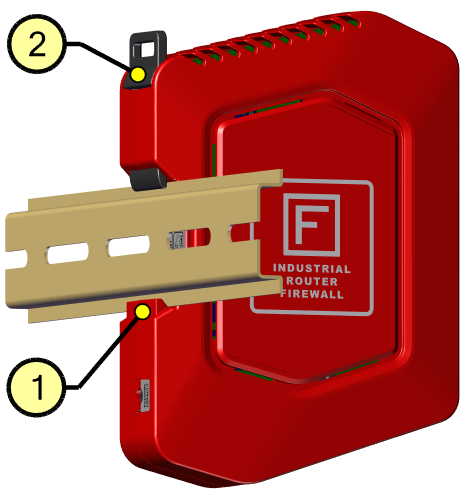

1. Position the IRF on the top-hat rail from below at an angle (1).

2. Pull the top-hat rail locking mechanism (2) upwards using a screwdriver, push the device from above onto the top-hat rail and remove the screwdriver.

3. The top-hat rail locking mechanism springs back to its original position.

4. Check that the IRF is seated securely on the top-hat rail.


$\\le1\iit-daten\DOK\DocuGlobe\Handbuch_Anleitung\1 Betriebsanleitungen\IRF1000\2_Quick_Start_Guide\Hutschiene.PNG$

To release the device from the top-hat rail, proceed in the reverse order.

Recommendation for use

When removing, take care not to damage the top-hat rail adapter of the device.

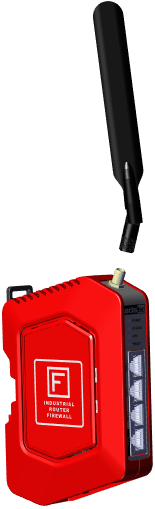

Optional: Attaching mobile communications antenna

Screw the mobile communications antenna to the antenna connection directly or via an SMA extension cable.
